  • MGA2510 Protocol Analyzer

Product details

  • Inline packet capture, L1 (PCS layer) bit capture, protocol analysis, monitoring and impairment jamming
  • Supports 100M to 10GbE rates including the first to support IEEE 802.3bz 2.5GBASE-T and 5GBASE-T Ethernet
  • First and only inline analyzer to support native copper 10GBASE-T! No need for troublesome media converters!
  • Now supporting native 10.3125Gbps USXGMII visibility, capture and impairments!

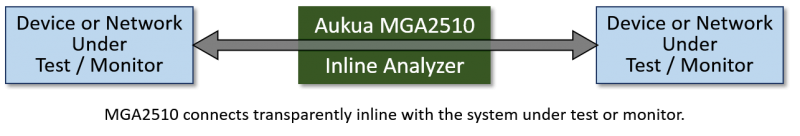

  • Low latency inline (pass-through) operation


 Supported Interfaces

• 10GBASE-T, 5GBASE-T, 2.5GBASE-T Ethernet (NBASE-T and IEEE 802.3bz support)
• 10GBASE-R, 5000BASE-R, 2500BASE-R
• 5000BASE-X, 2500BASE-X, 1000BASE-X
• 1000BASE-T and 100BASE-TX Ethernet
• Automotive Ethernet: 100BASE-T1 and 1000BASE-T1 (IEEE 802.3bw and IEEE 802.3bp)


• 100% line rate L1 bit (PCS layer) or L2+ packet (MAC layer) capture and protocol analysis
• Industry's largest capture buffers
• Nanosecond precision timestamps
• Low latency, non-retimed pass-through mode

Flexibility and Simplicity

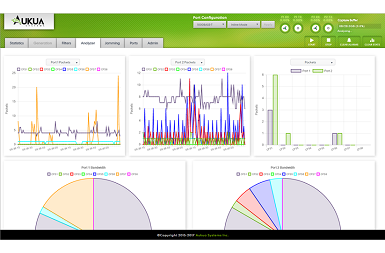

• Intuitive browser-based user interface
• Comprehensive API for automation
• Hundreds of protocol decodes
• User customizable capture filters and triggers
• Analyze bandwidth by protocol, CoS, addressing, port number, and much more
• Optional Ethernet Traffic Generation or Network Impairment Emulator modes
